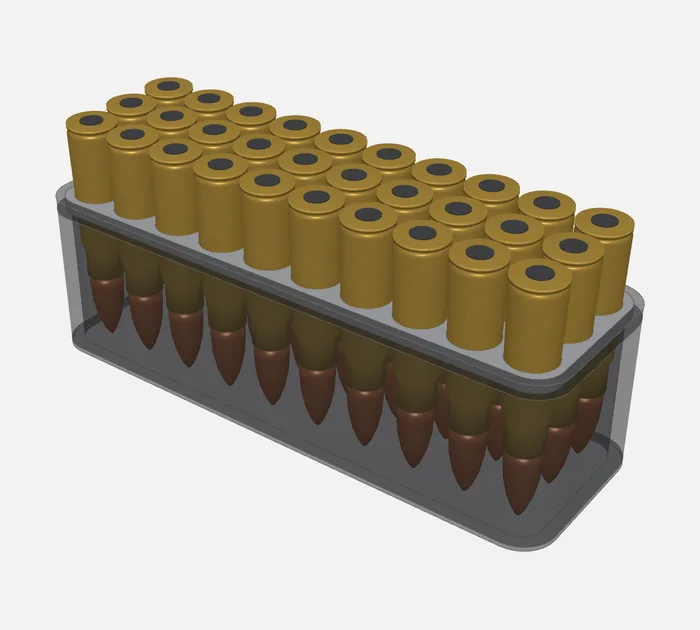

7.62×39 ammo tray for 30 rounds
The slots are sized for 7.62×39: each round stands upright and doesn't rattle. The tray goes into a lid box or a sliding-lid box. The configurator below is already set to this option — change the count or sizes and 3D, drawings and price update instantly.
Calibre
Measure with calipers. Hole = case Ø + 0.35 mm; pitch keeps rims clear; the round sticks out of the tray by about a third.
Standard
Layout
Columns
Rows
Plastic colour
Box
Lid
Tray
Standard: black box, grey lid and tray.
——
Total—
Large items and batches cost less; from 10 pcs — 30 % off everything
Drag to rotate
About this option
7.62×39 is the AKM, SKS and Vepr / Saiga carbine cartridge. Its case is wider and more tapered than 5.45, so it needs its own tray.
Specifications
- SKU: AT762-39-10x3
- Slots: 30 (10 × 3)
- Size with box: 132 × 44 × 39 mm
- Cartridge: rifle, case 38.7 mm, overall length 56 mm, rim Ø 11.4 mm
- PETG 3D print, no supports; 3 colours for box, lid and tray
- Price: 379 UAH
FAQ
How many 7.62×39 rounds does it hold?
The standard tray holds 30 rounds (10 × 3). Set any other count in the configurator — up to 250 mm wide and deep.
Can I get it without a box?
Yes — turn off “Box” in the configurator to get just the tray for a safe shelf or drawer.
How much is it?
The tray with box for 30 rounds of 7.62×39 is 379 UAH. 30 % off from 10 pcs; large items and batches cost less.
Can I change the size?
The configurator above is already set to this option — change the count or sizes and 3D, drawings and price update instantly.
Good to know
- Hole sizes for 9×19, 5.7×28, 5.56×45 and 7.62×39 come from RKrack production models; other calibres (Ukraine / USA / Europe, 40+) are computed from SAAMI / C.I.P.; a parametric mode fits any round.
- The 3 mm tray drops into the box seat (0.2 mm clearance) and rests on a ledge; the box has 2 mm walls and a 1 mm top.
- Printed in PETG, STL files go with the order.
